《Real-time TCD-vEEG monitoring for neurovascular coupling in epilepsy》

（Seizure Volume 29, July 2015, Pages 1-3）

【A B S T R A C T】

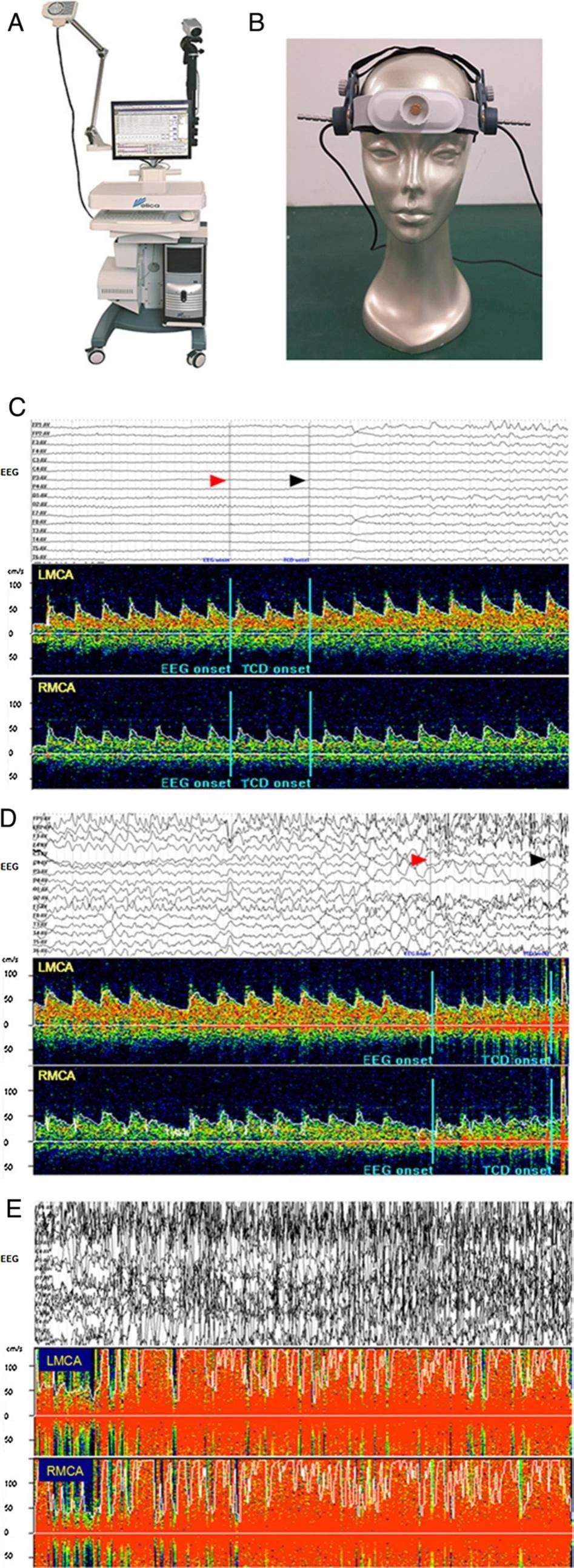

Purpose: Recently, a novel multi-model monitor has been available, which integrates real-time signals of transcranial Doppler (TCD) and video-EEG (vEEG) 【NSD-8100，Delica，China】into one workstation. We sought to test the feasibility of this device in detecting neurovascular coupling in patients with epilepsy.

Method: Cerebral blood flow velocity (CBFV) of bilateral middle cerebral arteries and vEEG during seizure episodes were recorded simultaneously in 12 patients (age 17–58 years) with partial epilepsies. The correlations between vEEG and CBFV findings were analyzed.

Results: Eleven seizure episodes were detected in 5 patients. Of them, bilateral CBFV increase with interhemispheric asymmetry was observed in 4 seizure episodes of 3 patients. EEG abnormalities preceded CBFV increase by 1–3 s at the onset of a seizure. In a patient with bilateral middle cerebral artery stenosis, no apparent CBFV changes were detected during 2 of 3 seizure episodes. Another patient with previous frontal hemorrhage displayed CBFV increase without interhemispheric asymmetry during 4 seizure episodes.

Conclusion: It is feasible to evaluate neurovascular coupling with good temporal correlation in patients with frequent seizure episodes by real-time TCD-vEEG monitoring.

《Transcranial Doppler combined with quantitative EEG brain function monitoring and outcome prediction in patients with severe acute intracerebral hemorrhage》

（Chen et al. Critical Care (2018) 22:36）

【A B S T R A C T】

Background: Neurological deterioration after intracerebral hemorrhage (ICH) is thought to be closely related to increased intracranial pressure (ICP), decreased cerebral blood flow (CBF), and brain metabolism. Transcranial Doppler(TCD) is increasingly used as an indirect measure of ICP, and quantitative EEG (QEEG) can reflect the coupling of CBF and metabolism. We aimed to combine TCD and QEEG to comprehensively assess brain function after ICH and provide prognostic diagnosis.

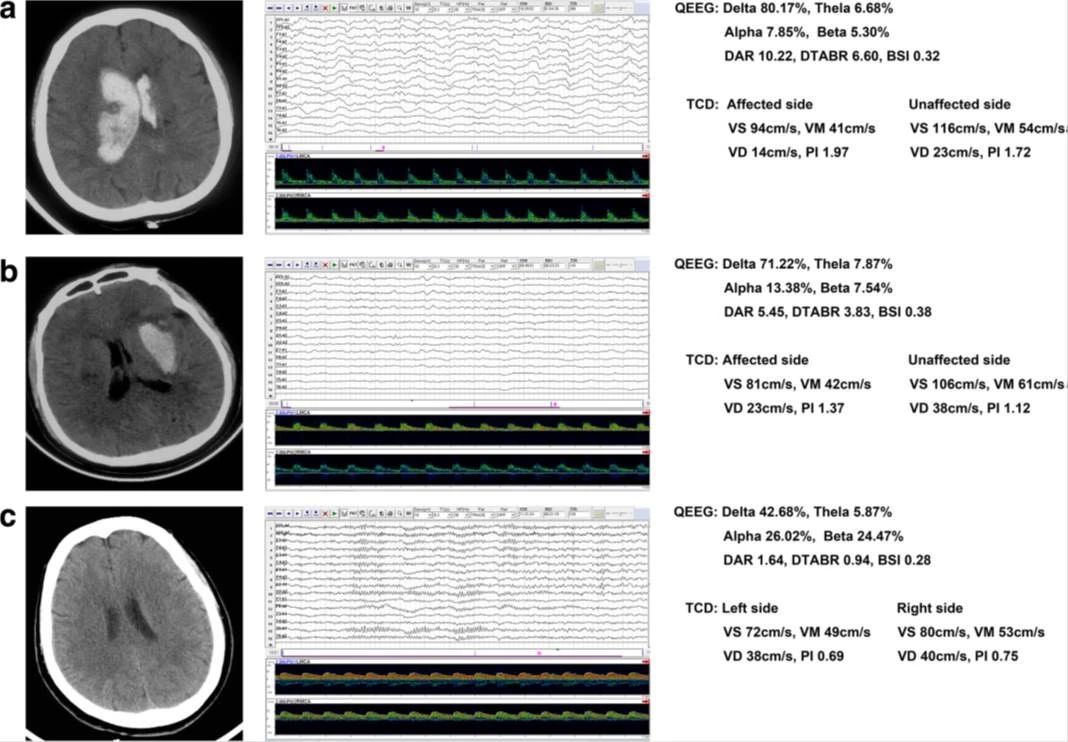

Methods: We prospectively enrolled patients with severe acute supratentorial (SAS)-ICH from June 2015 to December 2016. Mortality was assessed at 90-day follow-up. We collected demographic data, serological data, and clinical factors, and performed neurophysiological tests at study entry. Quantitative brain function monitoring was performed using a TCD-QEEG recording system at the patient’s bedside (NSD-8100; Delica, China). Univariate and multivariable analyses and receiver operating characteristic (ROC) curves were employed to assess the relationships between variables and outcome.

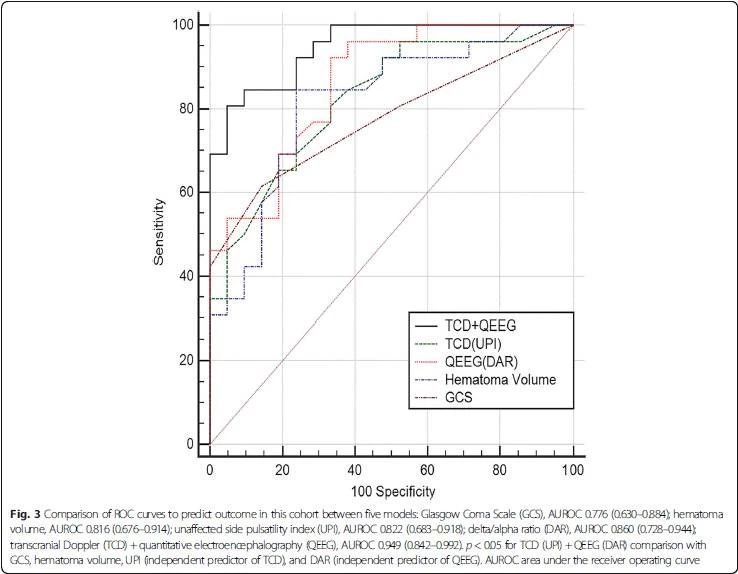

Results: Forty-seven patients (67.3 ± 12.6 years; 23 men) were studied. Mortality at 90 days was 55.3%. Statistical results showed there were no significant differences in brain symmetry index between survivors and nonsurvivors, nor between patients and controls (all p > 0.05). Only TCD indicators of the pulsatility index from unaffected hemispheres (UPI) (OR 2.373, CI 1.299–4.335, p = 0.005) and QEEG indicators of the delta/alpha ratio (DAR) (OR 5.306, CI 1.533–18.360, p = 0.008) were independent predictors for clinical outcome. The area under the ROC curve after the combination of UPI and DAR was 0.949, which showed better predictive accuracy compared to individual variables.

Conclusions: In patients with SAS-ICH, multimodal neuromonitoring with TCD combined with QEEG indicated that brain damage caused diffuse changes, and the predictive accuracy after combined use of TCD-QEEG was statistically superior in performance to any single variable, whether clinical or neurophysiological。

《顱內動脈重塑研究進展：從局灶性到普遍性重塑》

（中國實用內科雜志 2017 年 11 月第 37 卷第 11 期）

【摘要】

近年來學者們逐漸認識到動脈是一個活躍的器官，會隨多種病理生理情況發生重塑。從早期冠心病和周圍血管粥樣硬化所致的局灶性動脈重塑，到近年來報道的普遍性動脈重塑。文章綜述了顱內動脈重塑定義、分類，研究測量方法，重塑機制及與臨床癥狀疾病的關系。

【主要內容】

1、顱內動脈重塑的定義

動脈在不同的生理和病理?xiàng)l件下可向內收縮或

向外擴張，即動脈重塑(arterial remodeling) 。當顱內動脈產生上述現象即為顱內動脈重塑。

2 顱內動脈重塑的測量研究方法

目前動脈重塑的研究大都是橫斷面研究，難以動態觀察病灶處動脈重塑。采用比較斑塊處血管管周面積和臨近管腔相對正常處血管管周面積的方法來衡量斑塊處動脈重塑的情況。

研究者廣泛使用重塑率(remodeling ratio，RR) 來判定動脈重塑：RR ＝病灶處管周面積/ 參照點管周面積；RR>1.05 為擴張性重塑，RR<0.95 為縮窄性重塑，0.95<RR<1.05為無重塑。此測量方法也有一定局限性，由于血管從近端至遠端是逐漸變細的，參照點取近端可能會低估RR，參照點取遠端可能會高估RR。Qiao等 在矯正了顱內動脈測量點間距離和血管變細的因素后計算了RR。另一方面，在所研究血管可能無法找到完全不受動脈粥樣硬化影響的正常參照點。

目前在研究顱內動脈的普遍性重塑上，測量評價方法還沒有達成共識。

3 顱內動脈重塑的機制

顱內動脈重塑的機制及病理生理改變還不是十分明確。有限的關于周圍動脈的研究表明，血流動力學、 體液因子及炎癥與動脈重塑相關。血管內皮接收信號傳輸給臨近細胞，導致一系列影響細胞生長、凋亡、遷移和細胞外基質生成或激活的活動。需要強調的是，在不同的病理生理情況下，參與動脈重塑的主要機制可能是不同的。

4 顱內動脈重塑的臨床意義

動脈重塑是決定管腔大小的重要因素。在形態學上，擴張性重塑減輕管腔狹窄，縮窄性重塑加重管腔狹窄。組織學上，擴張性重塑與易損斑塊相關，斑塊成分有更大的脂質核心、炎癥和薄纖維帽；縮窄性重塑與穩定斑塊并存，斑塊有小的脂質核心和更多纖維等等。

5 總結

動脈重塑是一種常見的在多種生理、病理情況下，血管反應性向外擴張或向內收縮的現象。顱內動脈重塑分為在動脈粥樣硬化斑塊處的局灶性重塑，及沿整個血管節段的普遍性重塑。關于重塑的病理生理機制和普遍性重塑的研究還很缺乏，需要進一步的研究來系統闡述重塑類型的分布規律及臨床意義。研究動脈重塑可能對血管病的病例生理有更深入的認識，對患者個體化精準治療有潛在意義。
